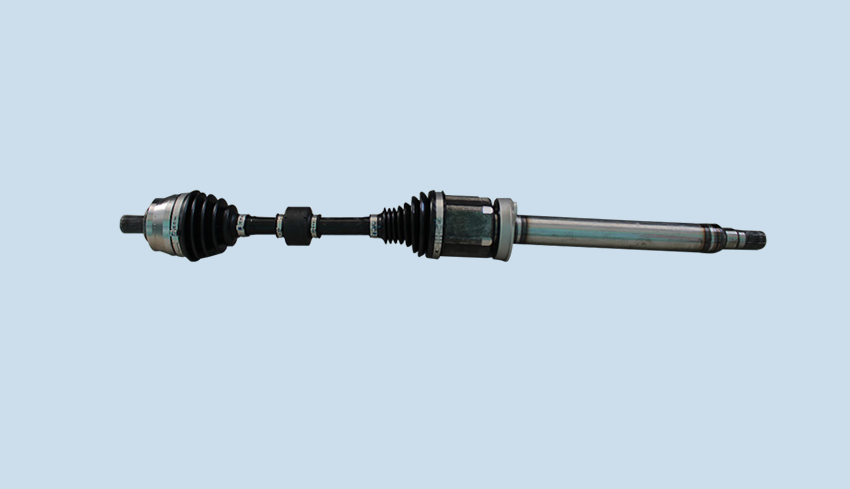

Long-handled hollow tube intermediate support type constant speed drive shaft assembly

Section type: intermediate-supporting shank other ATC Speed Axle

Pros: Lightweight

product description:

The long-handled hollow tube intermediate support type constant speed drive shaft assembly is a hollow shaft tube transmission shaft assembly , which includes a shaft tube, and two ends of the shaft tube are respectively provided with a left shaft fork and a right shaft fork; the shaft tube Including splined sleeve, left change

Diameter tube, main shaft tube and right reducing tube, the fork end of the left shaft slidingly fits with one end of the spline sleeve, and the other end of the spline sleeve passes the left reducing tube, the main shaft and the right reducing tube in order One end of the tube is fixedly connected,

The other end of the right reducing pipe is welded with the right shaft fork as a whole.

This design not only increases the natural frequency of the shaft tube, effectively increases the allowable length limit of the shaft tube, but also facilitates assembly, effectively reduces the total weight of the drive shaft system, and reduces production costs.
