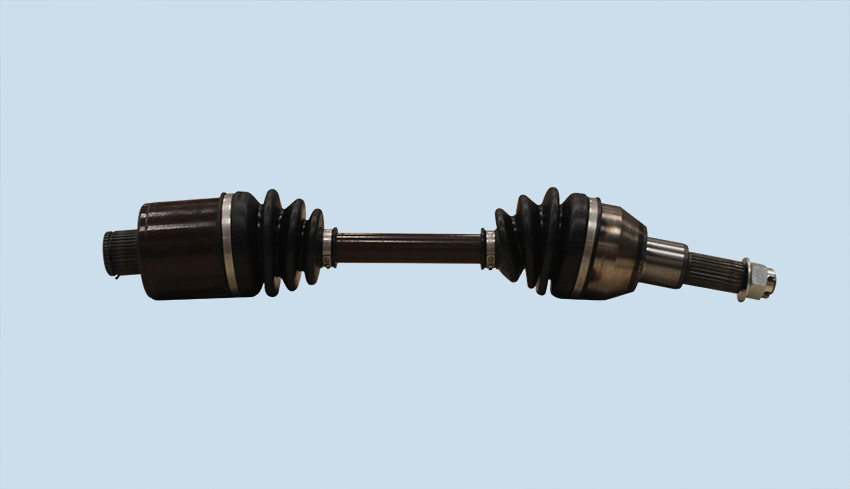

ATV constant speed drive shaft universal joint assembly

Section type: ATV constant velocity drive shaft universal joint assembly

Advantages: Good shock absorption

product description:

ATV constant speed drive shaft universal joint assembly A constant speed universal joint drive shaft assembly including a three-ball pin universal joint, a ball cage universal joint and an intermediate shaft, the three-ball joint universal joint The utility model comprises a three-ball pin universal joint housing and a three-ball pin dust cover. The ball cage universal joint includes a ball cage universal joint housing and a ball cage dust cover, the three-ball pin dust cover and a ball. One end of the cage dust cover is respectively overlapped with the three ball pin universal joint shell and the ball cage universal joint shell, and the other end is respectively fixed on the intermediate shaft. The three ball pin universal joint shell and the three ball pin A weighting block is provided at the connection of the dust cover, and a weighting block is provided at the connection between the ball cage universal joint housing and the ball cage dust cover; the intermediate shaft is respectively connected with the three ball pin dust cover and the ball dust cover Weighting blocks are respectively provided at the joints; the intermediate shaft is provided with shock-absorbing grooves in the middle of the joints of the three ball-pin universal joints and the ball-cage universal joints.

The assembly has a reasonable structure, low cost, and shock absorption.
