Section type: RF + three-stage TJ

Advantages: The moving section uses a long rod to increase the support of the intermediate bearing, which will reduce the risk of car shake and increase the user's physical examination.

product description:

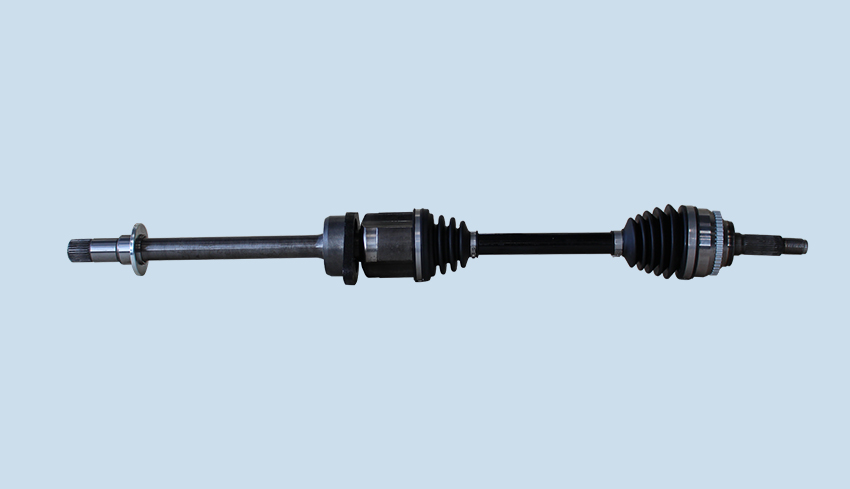

This drive shaft adopts a three-stage arrangement. Compared with the traditional two-stage arrangement, the three-stage drive shaft adds a bearing to the moving joint to play the role of slewing support. The outer ring of the bearing matches different ones according to the chassis arrangement. Bearing bracket, bearing bracket material can be roughly divided into nodular cast iron, cast aluminum. The bearing support structure shell is roughly divided into assembly type and integral type. Compared with the integral bearing bracket, the assembled bearing bracket has the characteristics of simple assembly and strong integrity. The assembled bearing bracket has the characteristics of high versatility, easy disassembly and assembly, and low assembly replacement cost;

The three-section drive shaft assembly mobile section can match the current mainstream AAR section, UTJ section and GI section. According to the actual arrangement angle of the chassis drive shaft of the vehicle, the mobile section type can be flexibly switched. The dust cover material supports TPE. Ester elastomer and polychloroprene (CR);

This structure is currently widely used in the chassis layout of passenger cars such as SUVs and cars, which can improve the NVH index of the entire vehicle and improve the ride comfort of the entire vehicle.
